8K@60 HDMI2.1/eARC Audio Extractor/Adapter, Out Audio to Amplifiers, Support 4K120Hz, HDR10+, Dolby Vision, Dolby Atmos, DTS:X, Audio Pass Through
Product details
| Management number | 233671747 | Release Date | 2026/06/27 | List Price | US$36.00 | Model Number | 233671747 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This 48Gbps HDMI2.1 and eARC audio extractor is designed for extract audio signals from an HDMI source or TV with HDMI ARC/eARC Port, output HDMI audio signal to amplifiers system. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It support EDID management and cable equalization. It provides an easy solution for HDMI source, Output video signal to display device while outputting audio signal to audio system. Support CEC volume control from TV to the amplifier sound system. Support CEC control from TV to the source and amplifier
- 【HDMI Audio extractor 4K120Hz】It can extract audio signals from HDMI input sources (Such as PS5, Fire TV stick,Laptop,Blu ray DVD,Apple TV), Outputting video signals to the TV, and pass-through audio signals to amplifiers.

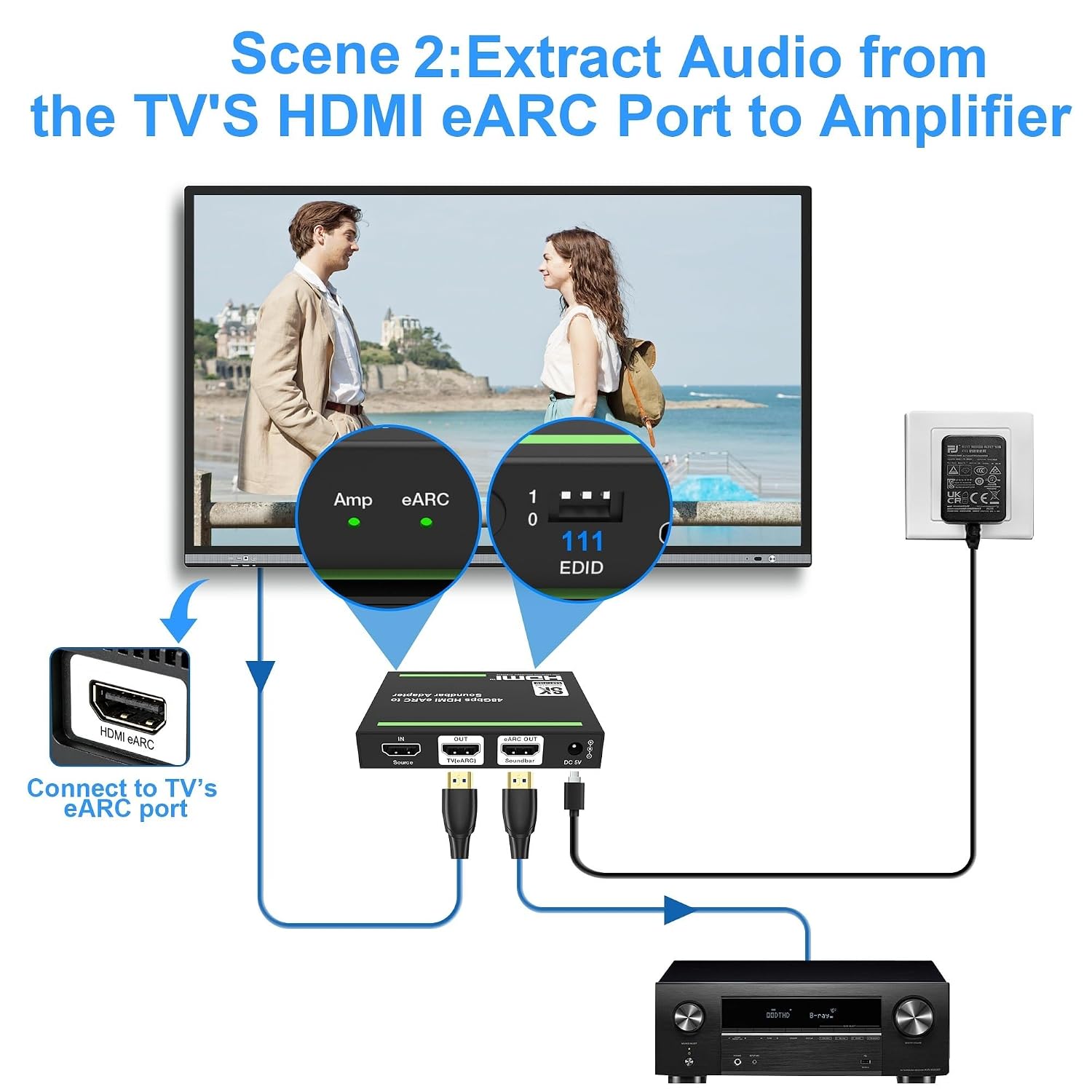

- 【eARC Audio Extractor】It can extract audio signals from TV with HDMI eARC port and transmitt the audio signals to amplifiers. When eARC/ARC mode is enabled, the audio signal of Amplifierr is the audio returned from the TV(the OUT interface of the device needs to be connected to the eARC interface of the TV). When eARC/ARC mode is disabled, the audio signal of amplifier is from the HDMI input source.
- 【HDMI Audio to Amplifier】: Supports full audio formats pass-through up to Dolby Atmos /DTS: X. But it does not support transcoding. Supports CEC volume control from TV to amplifier audio system
- 【Technical Specifications】Support 48Gbps FRL and 18Gbps TMDS video bandwidth; Video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit; Video output support HDR 10+, Dolby Vision.
- 【Audio Formats】:HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos;DTS,
| ASIN | B0GJS87PBM |
|---|---|
| Interface | HDMI |
| Brand Name | Wilxisum |
| Unit Count | 1.0 Count |
| Item Weight | 6.7 Ounces |
| Part Number | WX-WSEX-04 |
| Manufacturer | Wilxisum |
| Material Type | Metal |
| Number of Pins | 38 |
| Audio Output Mode | Stereo, Surround Sound, 3D Spatial Audio |
| Compatible Devices | PS5, Fire TV stick, Laptop, Blu ray DVD, Apple TV, TV |
| Number of Channels | 1 |
| Included Components | Audio Extractor |
| Item Dimensions L x W | 3.74"L x 0.63"W |
| Maximum Supply Voltage | 5 Volts |
| Minimum Supply Voltage | 5 Volts |
| Upper Temperature Rating | 40 Degrees Celsius |
